Product Application

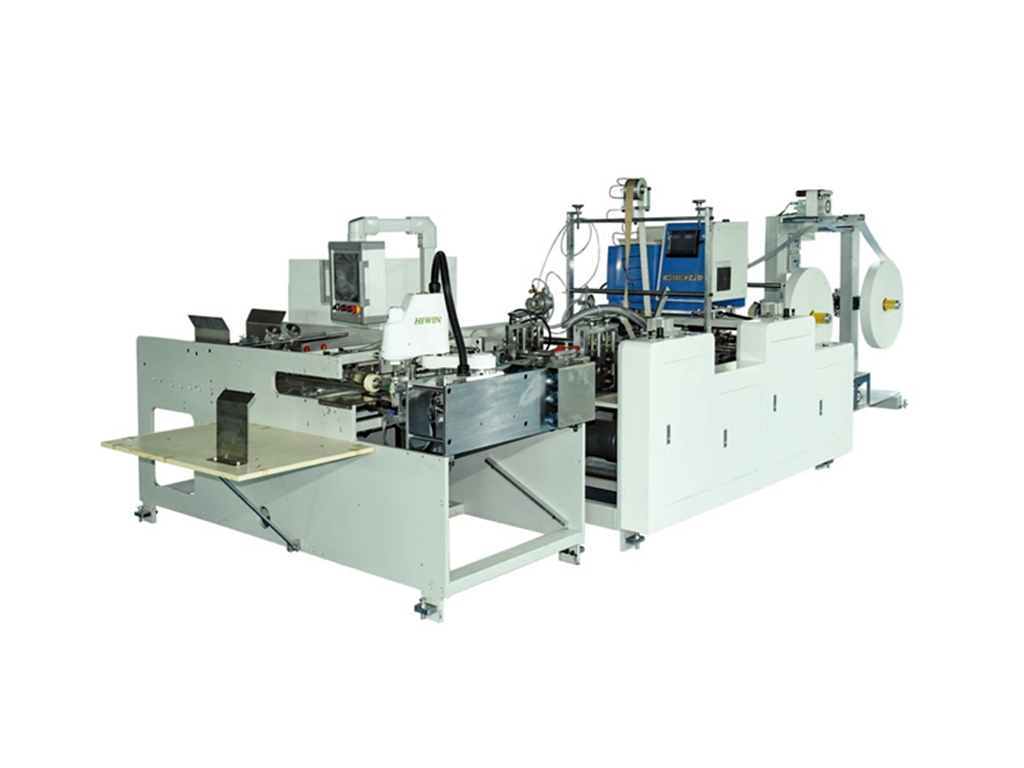

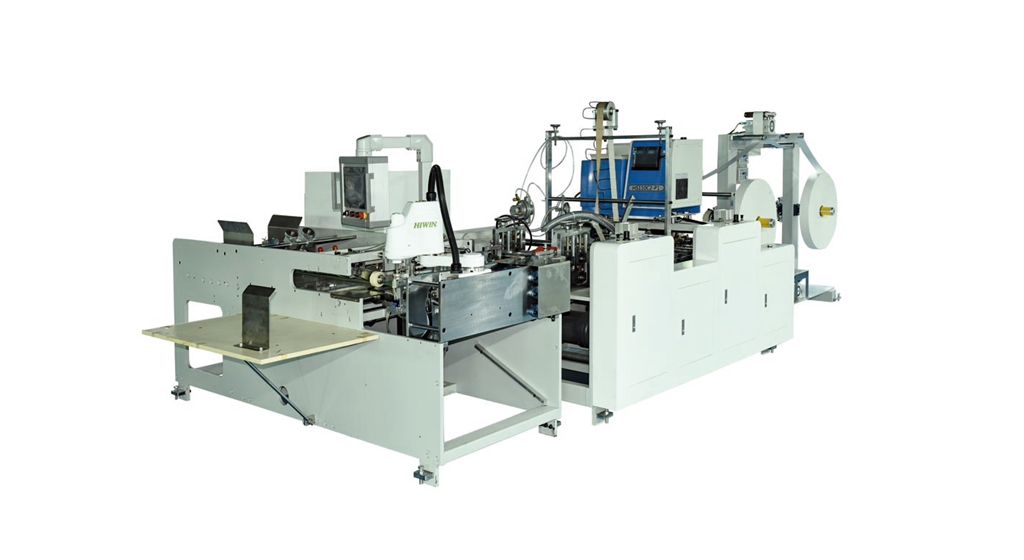

This machine designed to work with our paper bag machine, can produce paper rope handles and then stick the handles to paper bags to make paper bag with handle in line. This machine takes two narrow paper rolls and one paper rope roll as raw material, sticks paper belts and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
Main Technical Variables
| Handle length（A） | 152/190mm | |
| Rope spacing(B) | 75/95mm | |
| Paper width(C) | 30/40mm | |
| Paper rope length | 360mm | |
| Paper rope height(C1) | 100mm | |
| Rope diameter | Φ2.5~5mm | |
| Bag width | 250-400mm | |
| Bag height | 250-450mm | |
| Top opening size | Over 130mm | |
| Production speed | 30-35 pcs/min | |
| Servo motor power | 750W | |
| Total power | 380V，10KW，50HZ | |
| Overall dimension | L6000*W1600*H1500mm | |

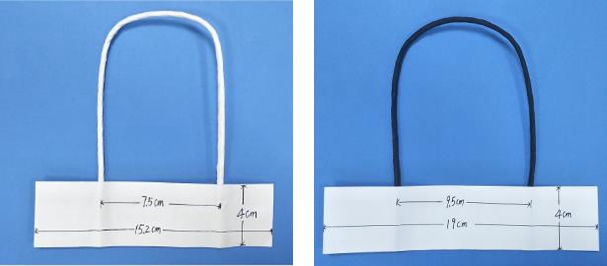

Sample Picture
