ONL-E1300 Non Woven Embossing Machine

home/products/ONL-E1300 Non Woven Embossing Machine

ONL-E1300 Non Woven Embossing Machine

ONL-E1300 Non Woven Embossing Machine Product Application:

Download DOC


Product Application

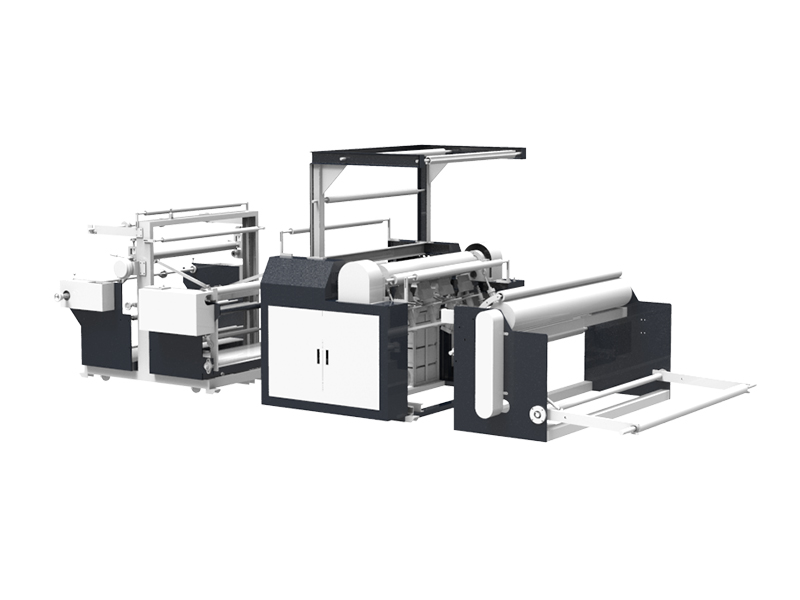

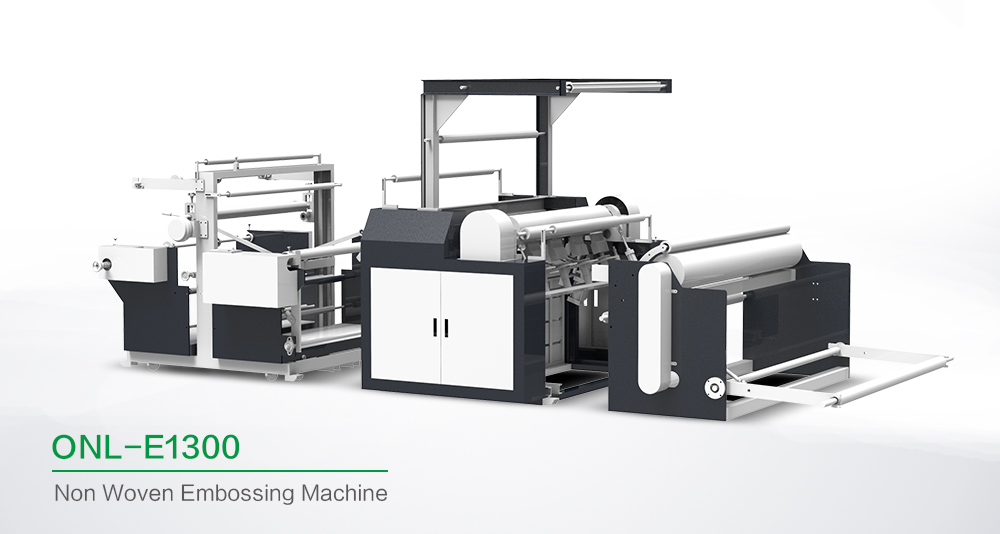

ONL-E1300 Non Woven Embossing Machine

This machine is our 2017 lastest design, it's suitable for non woven fabric with other material, such as non woven fabric, BOPP film, bright film, etc. In stardand, The pattern support grid pattern, other pattern can customized and need confirm after communicate. Embossed non woven fabric roller can been used to make bag. The effective is very fashionable as the paper bag.



Main Technical Variables

Type

ONL-E1200

More Wide Can Be Customized

Roller Width

1200mm



Fabric Thickness

35-100GSM

More thin or thick tell us please

Diameter Of Feeding Part

60-120GSM



Power Supply

380V 50Hz

Can change according your factory

Embossing speed

1-18m/min



Overall Size

7500X2050X2200MM

20FT Container*1

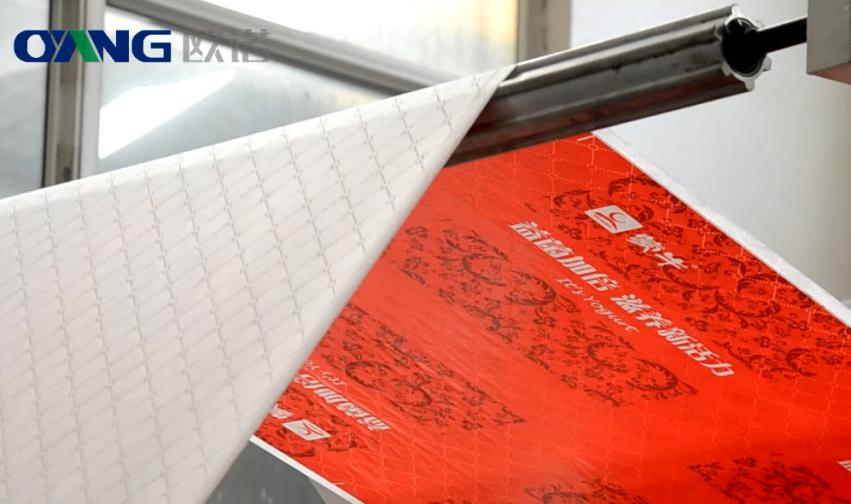

Non Woven Embossed Roll

Material: Non woven fabric with BOPP film.

Process: The film is rotogravure printed before embossing.

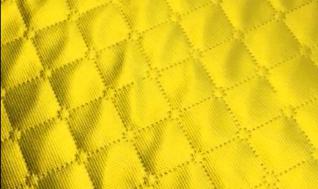

Non Woven Embossed Roll

Material: Non woven fabric with glossy film.

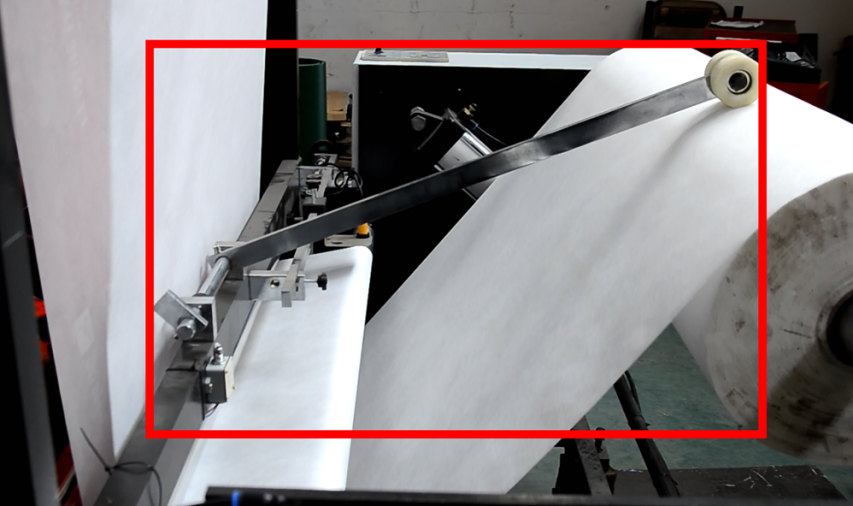

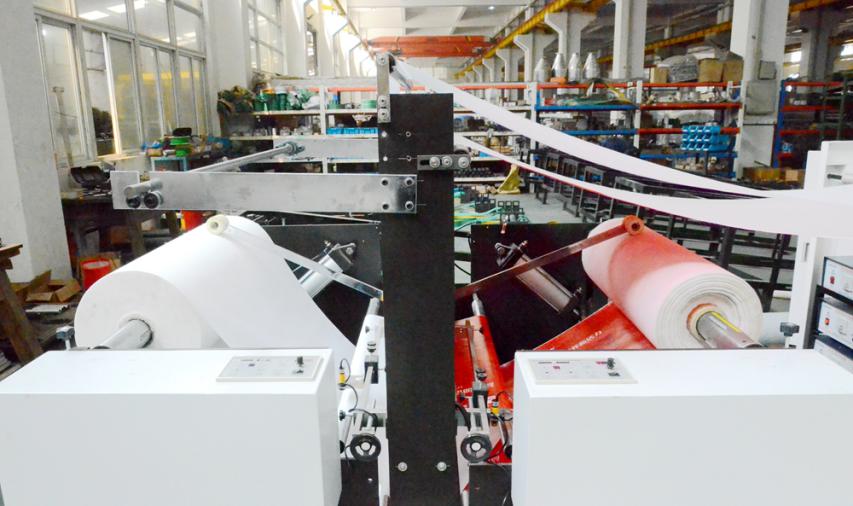

Feeding Part

Function: Automatic loading, magnetic power tension controller, Automatic correcting deviation system.

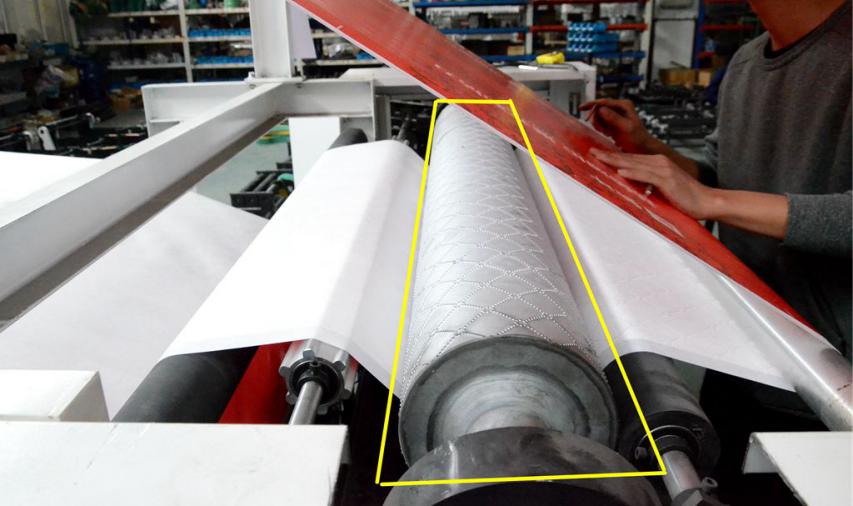

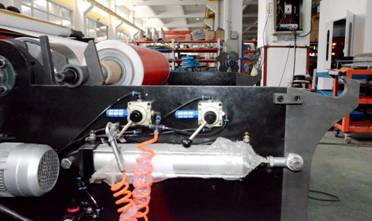

Ultrasonic Non Woven Embossing

Function: Using Embossing Roll to embossing double layer material by Ultrasonic sealing.

Embossing max width: 1200MM

Original: Allwell

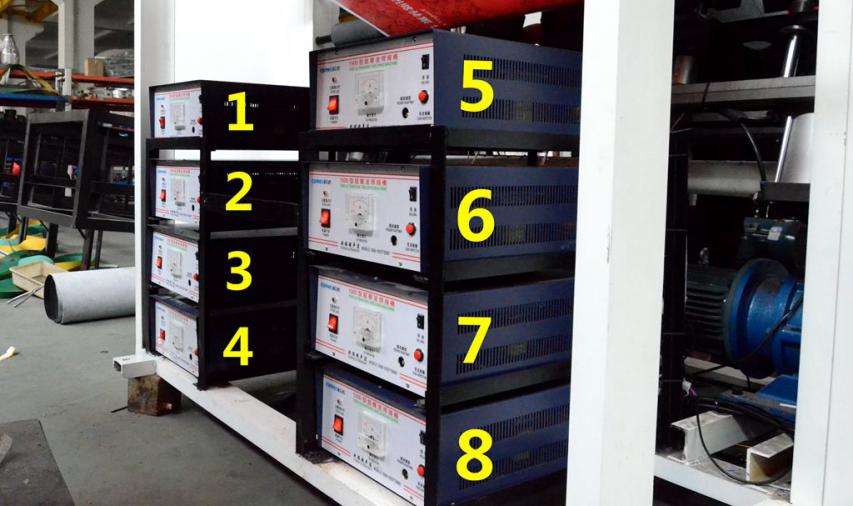

This Part have eight ultrasonics with automatic up and down function which can control the embossing work or not when machine running.

Ultrasonic

Function: sealing non woven fabric with other material

Our engineer would teach you the way when machine install

Rewinding Part

Function: Automatic loading and unloading .

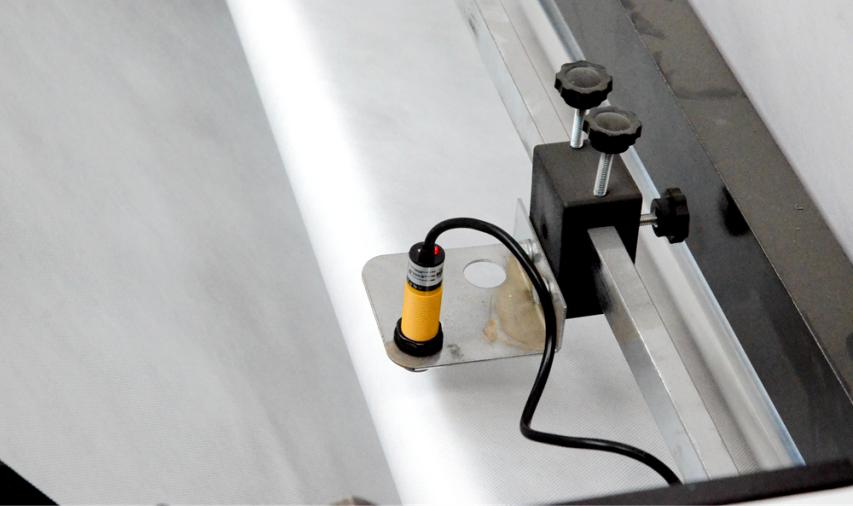

Correcting Deviation Device

Function: This part is for the picture check on the non woven fabric to ensure embossing accurate.

Automatic Shutdown System

Allwell Machine would stop if the check eye miss the picture.

The following is OUR load container info for ONL-E1200 Embossing Machine. Special datawould be supply after confirm your order.


Container


One 20'ft container


Weight
  2300KG

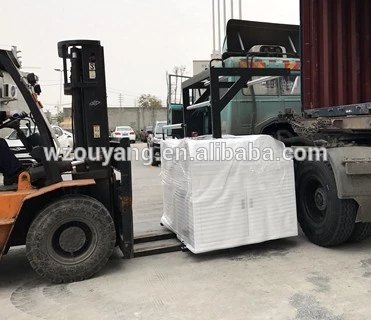

Packaging

Details


Pearl cottone with plastic film.Good suggestion for you wooden pallet, it protect the goods from the strain of long sea voyage.



Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
