ONL-XD Automatic Non Woven Crosscut And Handle Fix Machine

home/products/ONL-XD Automatic Non Woven Crosscut And Handle Fix Machine

ONL-XD Automatic Non Woven Crosscut And Handle Fix Machine

ONL-XD Automatic Non Woven Crosscut And Handle Fix Machine Product Application:

Download DOC


Product Application

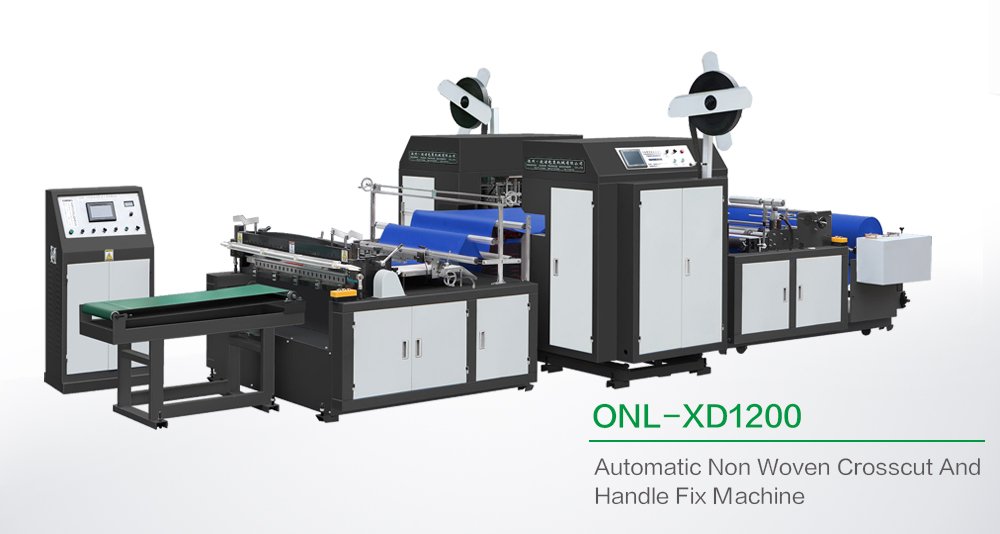

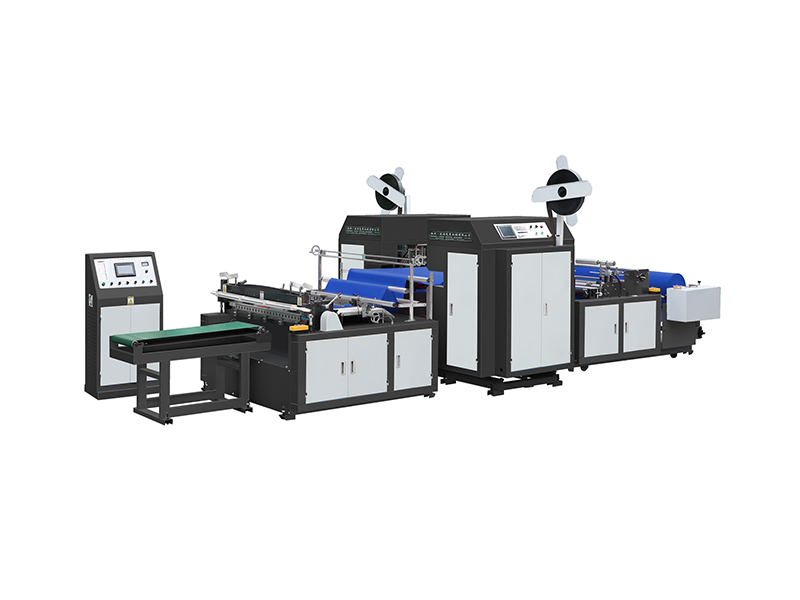

ONL-XD1200 Non Woven Crosscut and Handle Fix Machine

This machine is special design for non woven sheet cutting. When you cutting the sheet, it can also automatically fixing the loop handle. It is design for manual non woven bag making, such as non woven win bag, non woven gift bag, etc. It reduce a lot of bag making profess and save lots of labor cost.

Type

ONL-XD1200

Roller width

500-1100mm

Cutting speed

30-60pcs/min

Power Supply

220V 50Hz

Ultrasonic

4 Sets Ø55mm; 2 Sets 200x30mm

Total Power

10KW

Overall Size

4200X1700X1300MM

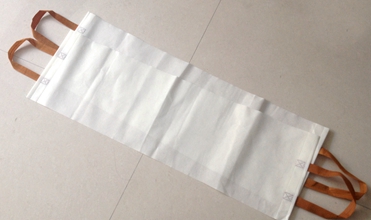

Sample

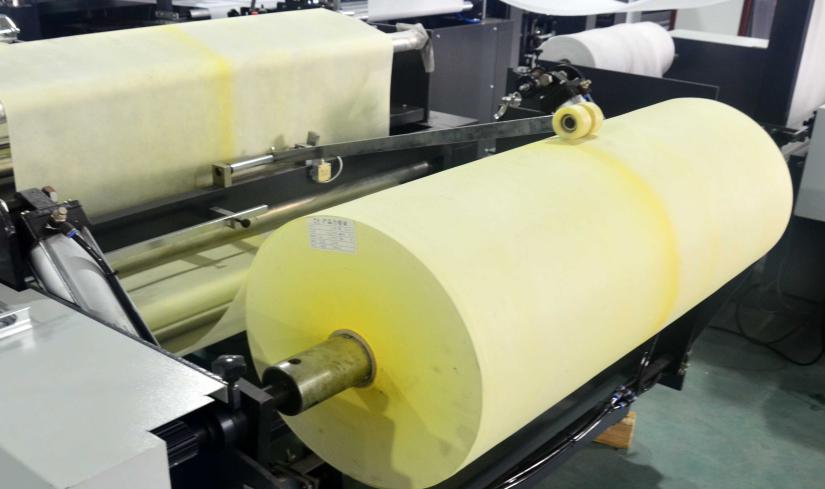

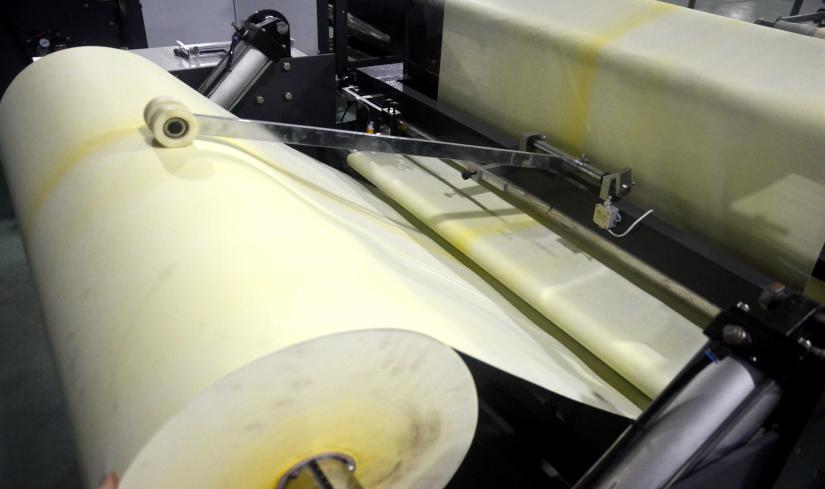

Feeding Part

Function: Automatic loading, magnetic power tension controller, Automatic correcting deviation system.

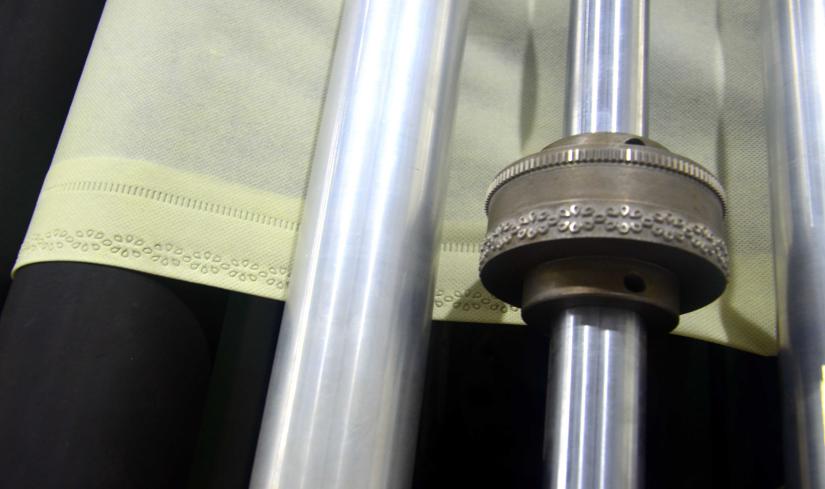

Mouth Fold And Sealing

Function: Fold part can adjust, One side one ultrasonic part
Brand: Ounuo

This Part have two
ultrasonic



Automatic shutdown system

When the fabric is totally finished, the machine would stop cutting.

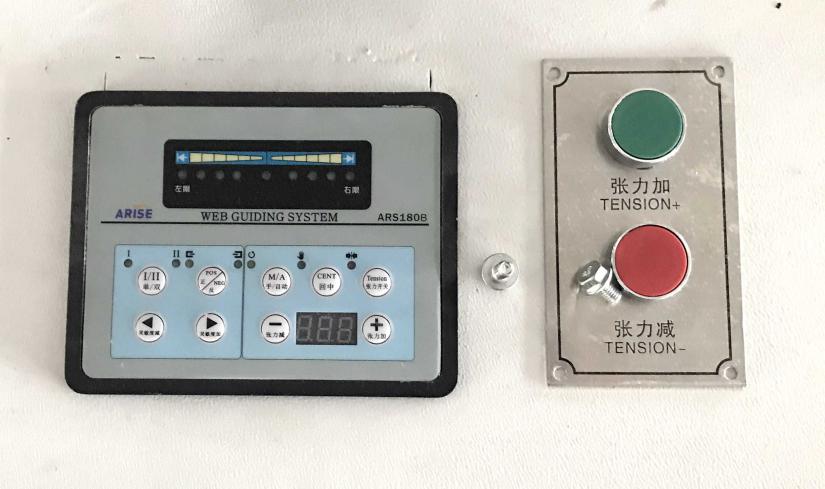

Magnetic power tension controller

Confirm fabric under same tension.

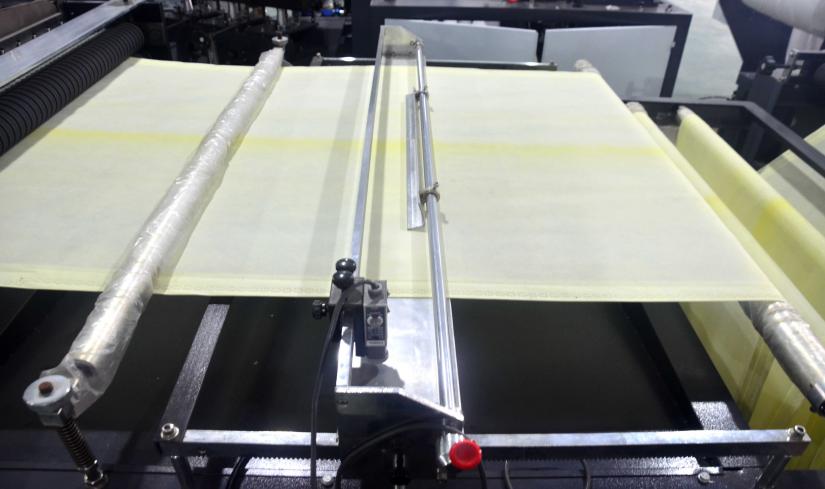

Photoelectric Tracking

Function: This part is for the picture check on the nonwoven fabric to ensure your bag making accurate.

Ounuo Bag Making Machine would stop if the check eye miss the picture.

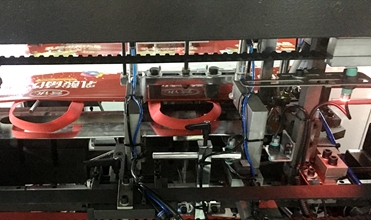

Handle Online Making

Function: Attach the handle on the fabric, Once, two side handle ultrasonic sealing
Ultrasonic Brand: Ounuo

This Part have four ultrasonics

2Sets ?55mm; 2Sets 200x30mm

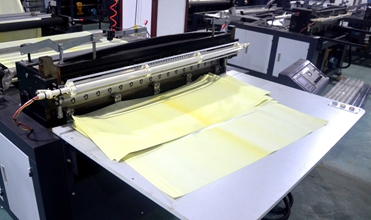

Cut And Collect

Function: Cutting the fabric sheet by sheet and collect, then pack these goods.

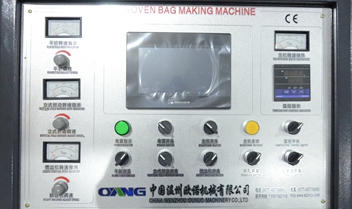

Computer Controller





Packaging


Container

40 ft container


Weight


2300KG

 Packaging

   Details


Pearl cotton with plastic film.

Wooden pallet also available, protect the goods from the strain of long sea voyage .




Allwell Machinery, as a professional manufacturer of spunbonded PP non woven fabric line, non woven bag making machine, non woven printing machine, soft handle sealing machine and relevantequipment, has an area of 13,000 square meters and 130 on-the-job employees.

We start from a smart factory since 2006. We keep innovating and upgrading equipment to make non woven bag more attractive and durables. 2012-2013, we innovated the first set of one time forming laminated non woven box bag making machine all of the world and get successfully market. The products and services now cover more than 80 countries.

Today, we are adhearing energy saving, efficient, environmental idea to be the leader of non woven bag making industry. We have a great dream and responsibility to provide solution for the intelligent bag making industry.



Allwell have gained the certificate of ISO9001 quality management system with all products gained the European CE.

Our R&D Team merges the advanced philosophy to practice and succeeds in applying to the related products. The excellent quality and performance of our product
originatedfrom our long-term and continuous test and improvement. 2012-2013, we setup a new project of one time forming non woven box bag making machine. We succeed developed this machine - Leader Machine and get the invention patents as shown above.



2015, we succeed build a new factory and 2016 we import 5 set CNC 5 sides work coordinate machining, 24 hours processing to guarantee the precision of the machine. All our products are better than therelevant industry standards.


Pre-Sales One-stop Service

* Inquiry and consulting support
Latest industry trends
* More fit bag making solution
* Sample testing support
* View our Factory
* Suggest layout support


After-Sales Service

* One year warranty
* Machine test video before delivery
* English Manual, Electric Diagram
* Training how to
install the machine, training how to use the machine
* Engineers available to service machinery overseas
