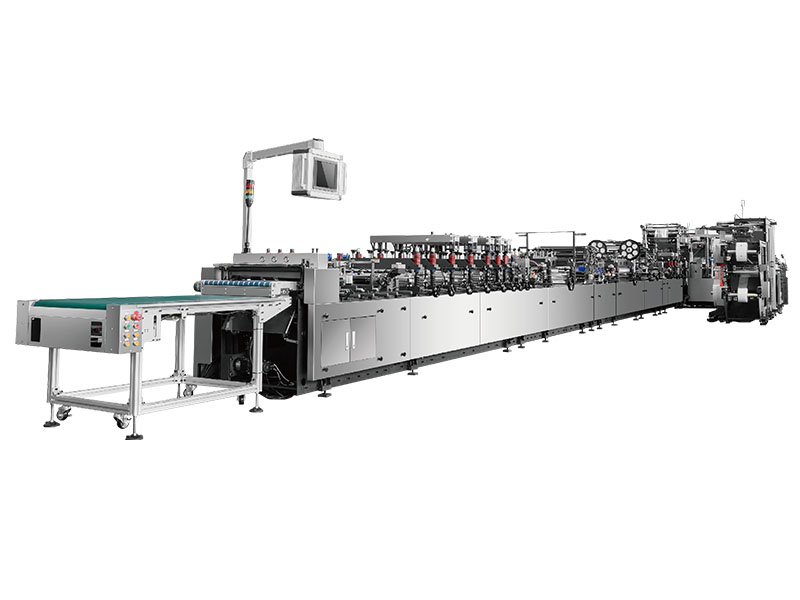

OYANG3 TOP-550FBZ Quad-Seal/Flat Bottom Pouch Machine

home/products/OYANG3 TOP-550FBZ Quad-Seal/Flat Bottom Pouch Machine

OYANG3 TOP-550FBZ Quad-Seal/Flat Bottom Pouch Machine

OYANG3 TOP-550FBZ Quad-Seal/Flat Bottom Pouch Machine Product Application:

Makes quad seal flat bottom pouch for food & beverage packaging

Download DOC

Product Description

1.The body wall panel adopts a snap on structure, which is stable and vibration free, fully meeting the strength requirements of high-speed machines.
2.The gantry frame can be reverse threaded, effectively reducing scratches.
3.Wireless remote control operation of the machine makes debugging more convenient and improves production efficiency.
4.Easy to Tear Zipper Die Cut : Formed in one go, guided by precision guide rails.
5.Cutting knife advantage: patented product, gusset does not stick and no burrs.
6.The gusset moves forward and backward by the servo motor and precision slide rails. Machine tool level precision electronic hand-wheel adjustment, with the accuracy of up to 1μ(0.001mm).
7.The main membrane, side gusset, and PE reinforcing strip can all achieve non-stop refueling.
8.Pouch making capacity depends on film material thickness and option

Product Parameter

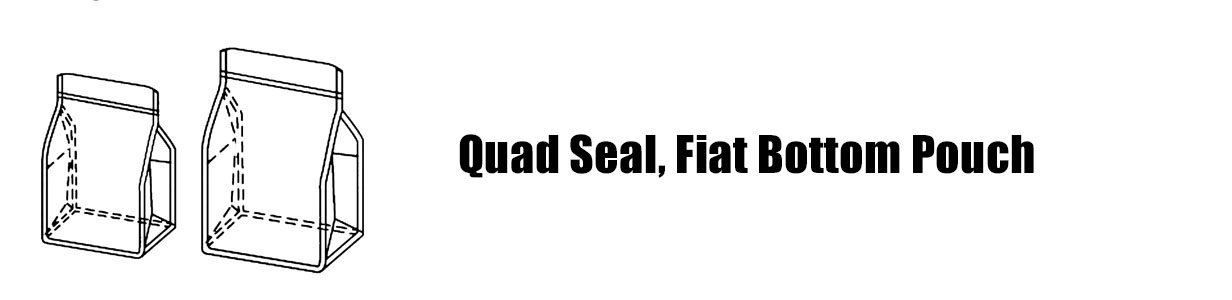

Quad Seal, Flat Bottom Pouch

Width of Bag

Max 300mm, Min 100mm (No Skip Function)

Length of Bag

Max 650mm, Min.180mm
Min. side gusset depth≥180mm

Size of Body Film

Max Width 1320mm, diameter φ800mm

Size of Inserted Bottom

Max Width330mm, diameter φ800mm

Speed (Flat-bottom Pouch)

35~100 Cuts/min

Machine Speed

Stand-Up Pouch(Folded)with Zipper
15~120 Cuts/min

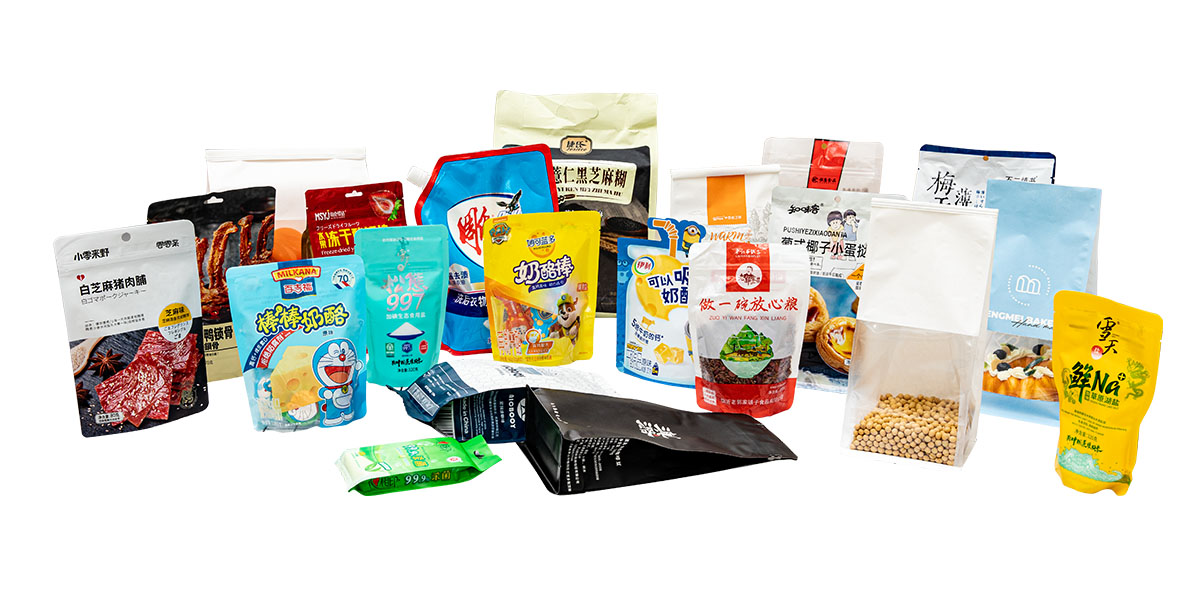

Packaging soultion from medicine infusion bag to pet foods etc.

  • The machine body length is short
  • Stable operation Conventional material and bag type, min.speed 120pcs/mins can also ensure that the material does not swing back and forth.
  • Easy to operate and the characteristics of the short fuselage can make the adjustment of the cost of materials and time greatly reduced

Zhejiang Ounuo Machinery Co,Ltd. is a professional manufacturer of supporting equipment such as paper packaging equipment, paper product equipment and non woven fabric industry chain. We are located in Pingyang County, Wenzhou City, Zhejiang Province, covering an area of 130000 square metres, 17 years deep ploughing in packaging equipment industry. Since its establishmentthe company has been market-oriented, relying on science and technology and vigorously developing new products. Invest 200 million imported of Japan MAZAK, OKUMA, Taiwan WELLE etc, the high-precision CNC Machine, to ensure the precision of the components and the stability of the whole machine.

Ounuo's Misson: Industry Is Keeping Change Because of Us.

Ounuo's Vision (10-15 Years): Responsibility to Promotion Solution of Top Quality and Intelligent Bag Making Industry. Keep in mind the mission and vision and strive to provide world. Our R&D team merges the advanced philosopy to practice and succeeds in applying to the related products The excellent quality and performance of our product originates from our long-term and continuous test and improvement. Al
