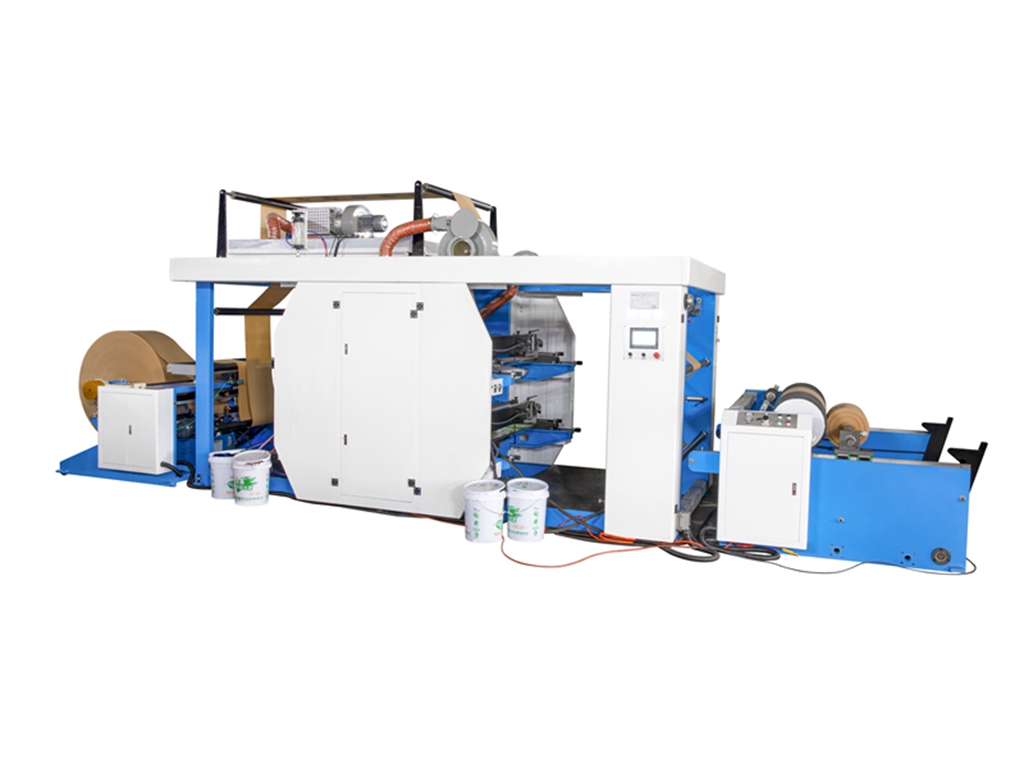

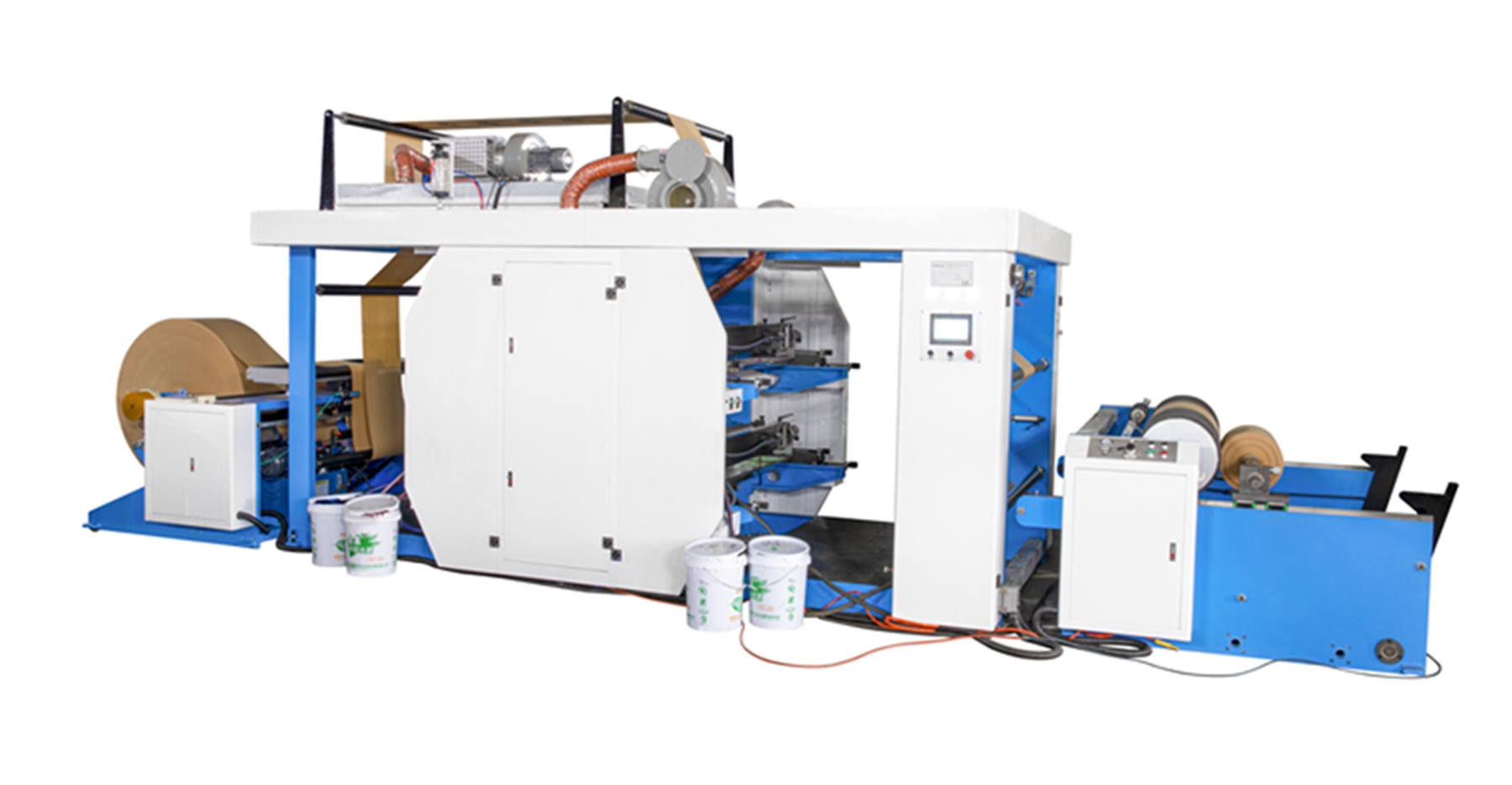

ZYT-4 Paper Roll To Roll Printing Machine

ZYT-4 Paper Roll To Roll Printing Machine Product Application:

This machine is ideal equipment for paper printing. Adopt rubber plate or resin plate or resin plate to printing paper with water-based Ink. using chamber doctor blade and ceremic roller structure,More eco friendly and machine using automatic magnetic tension control system to ensure uniform tension. roll to roll printing supply more higher effective capacity.

Download DOC

Contact Now

Product Application

Main Technical Variables

TYPE	ZYT4-1400	ZYT4-1300	ZYT4-1200	ZYT4-1000	ZYT4-800
Max. Printing material width	1400mm	1300mm	1200mm	1000mm	800mm
Max. Printing width	1360mm	1260mm	1160mm	960mm	760mm
Max. Unwinding diameter	1300mm	1300mm	1300mm	1300mm	1300mm
Max. Rewinding diameter	1300mm	1300mm	1300mm	1300mm	1300mm
Printing length range	230-1000mm	230-1000mm	230-1000mm	230-1000mm	230-1000mm
Printing speed	5-100m∕min	5-100m∕min	5-100m∕min	5-100m∕min	5-100m∕min
Register precision	≤±0.15mm	≤±0.15mm	≤±0.15mm	≤±0.15mm	≤±0.15mm
Thickness of plate（including the thickness of double sides glue）	2.28mm+0.38mm	2.28mm+0.38mm	2.28mm+0.38mm	2.28mm+0.38mm	2.28mm+0.38mm

Procedure

1. Figure out the paper width when you get a bag order.
2. Purchase the special width paper rollers or slitting the general one into right width.
3. Printing according to your customers' requirement.
