Product Application

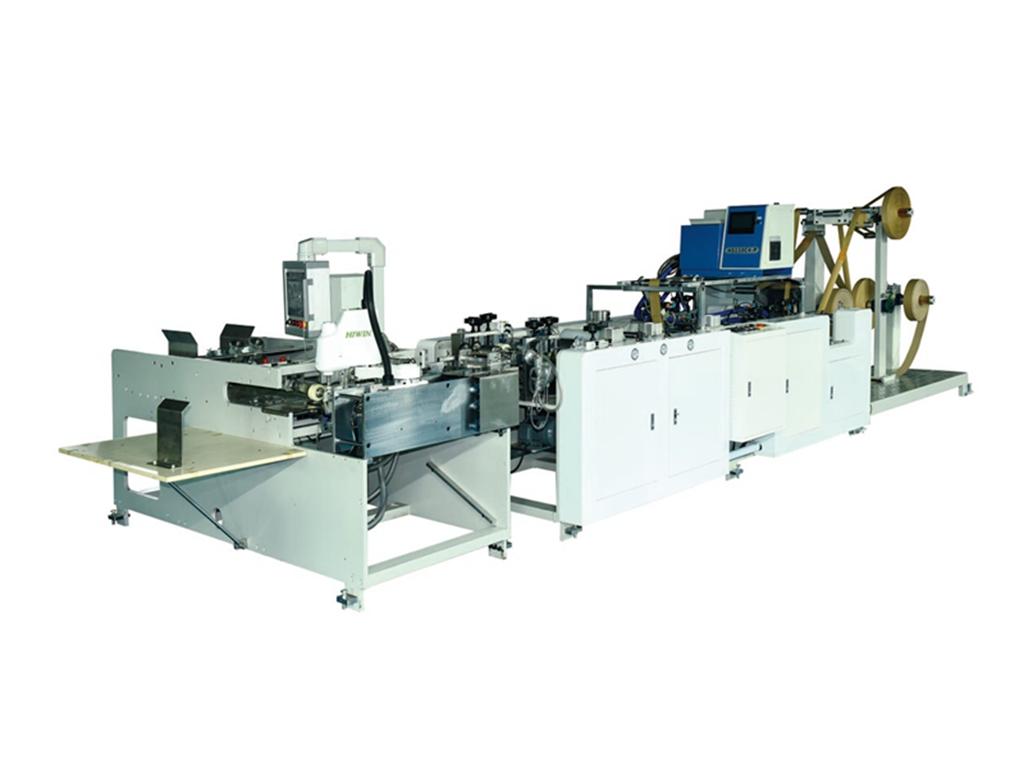

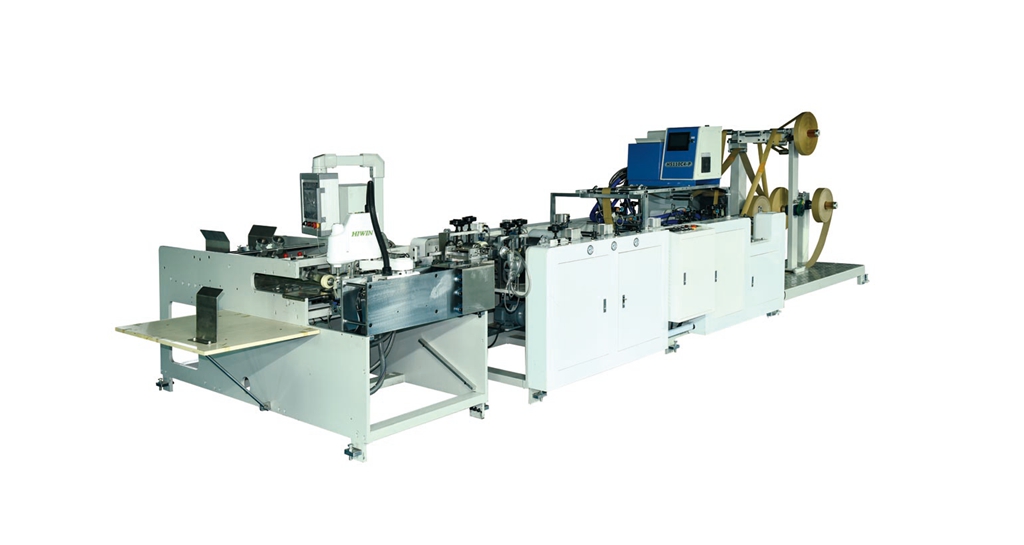

This machine mainly work with semi-automatic paper bag machines. Through complex processes but with simple operation, it can produce flat paper bag handle and then paste it to the paper bags in line. Hence save lots of labor cost for users.
Main Technical Variables

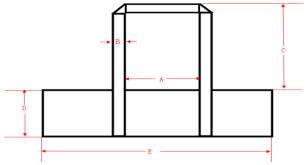

Rope spacing(A)
84mm
Rope width(B)
12mm
Paper rope height(C)
100mm
Paper width(D)
40mm
Paper length(E)
152mm
Rope length
352mm
Bag width
250-400mm
Bag height
250-450mm
Top opening size
Over 130mm
Production speed
35~40 pcs/min
Servo motor power
750W
Total power
380V，10KW，50HZ
Overall dimension
L7000*W1600*H1500mm

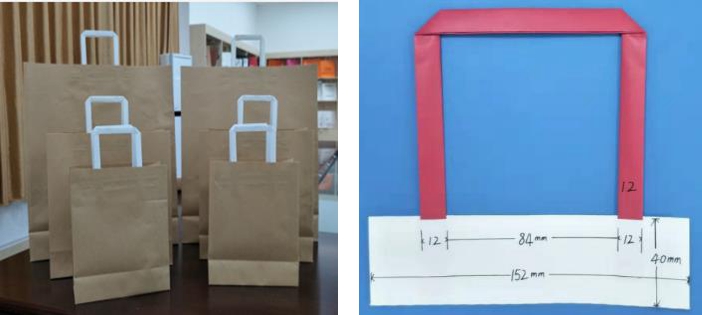

Sample Picture
