Product Application

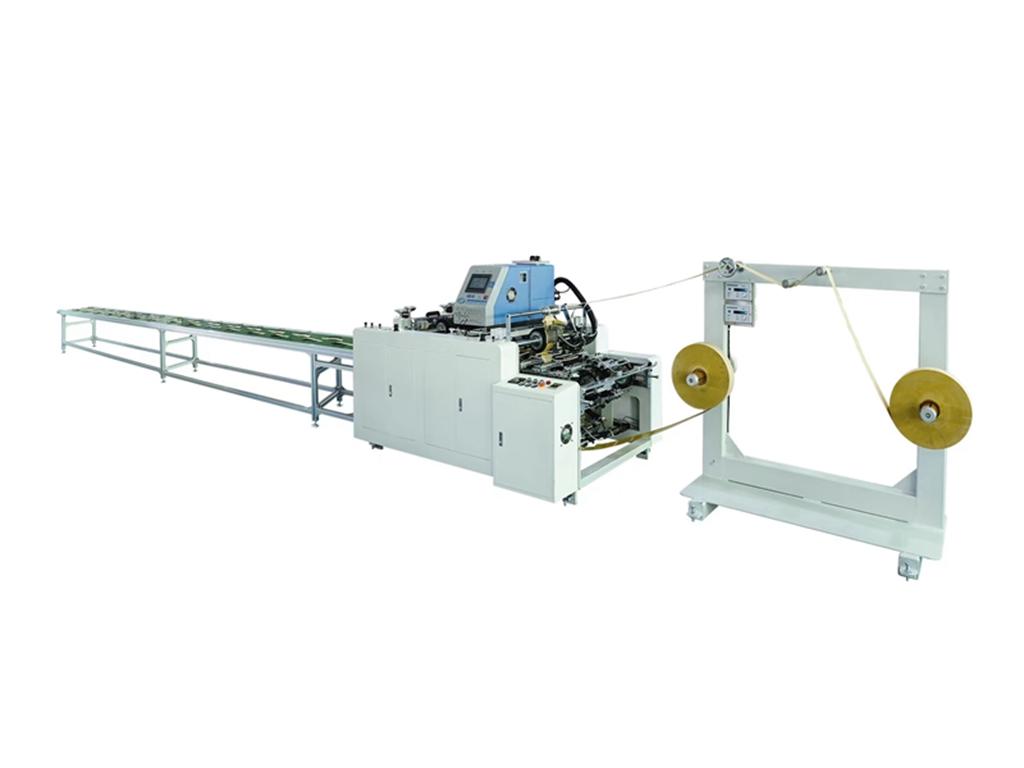

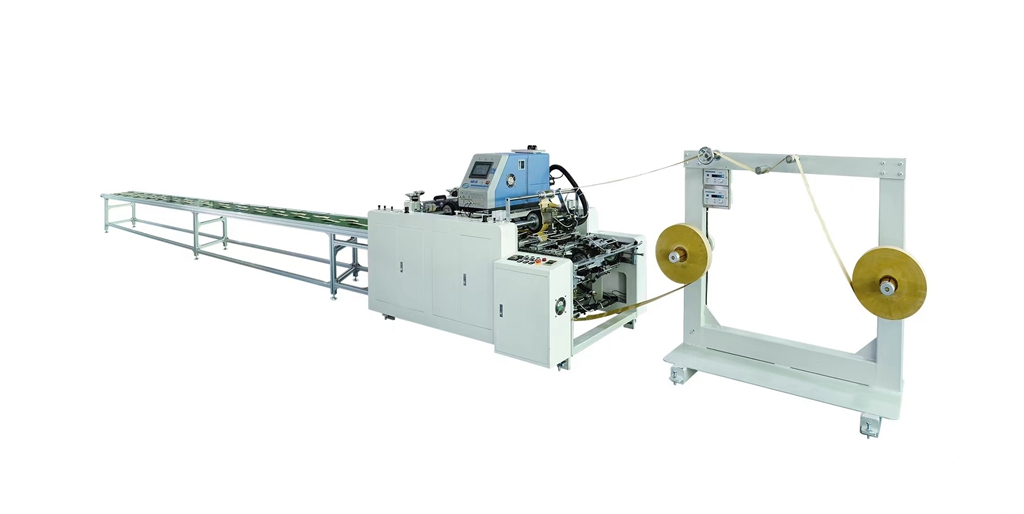

This machine is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.
Main Technical Variables
| Paper Roll Core Diameter | Φ76 mm(3'') |
| Max. Paper Roll Diameter | Φ1000mm |
| Production Speed | 10000pairs/hour |
| Power Requirements | 380V |
| Total Power | 7.8KW |
| Total Weight | Approx.1500kg |
| Overall Dimension | L4000*W1300*H1500mm |
| Paper Length | 152-190mm(Optional) |
| Paper Rope Handle Spacing | 75-95mm(Optional) |
| Paper Width | 30/40mm |
| Paper Rope Height | 100mm |
| Paper Roll Diameter | 3.0-4mm |
| Glue Type | Hot-melt glue |

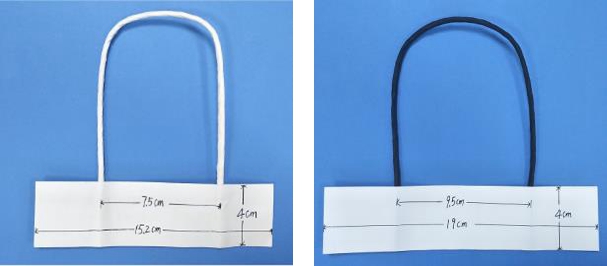

Sample Picture
